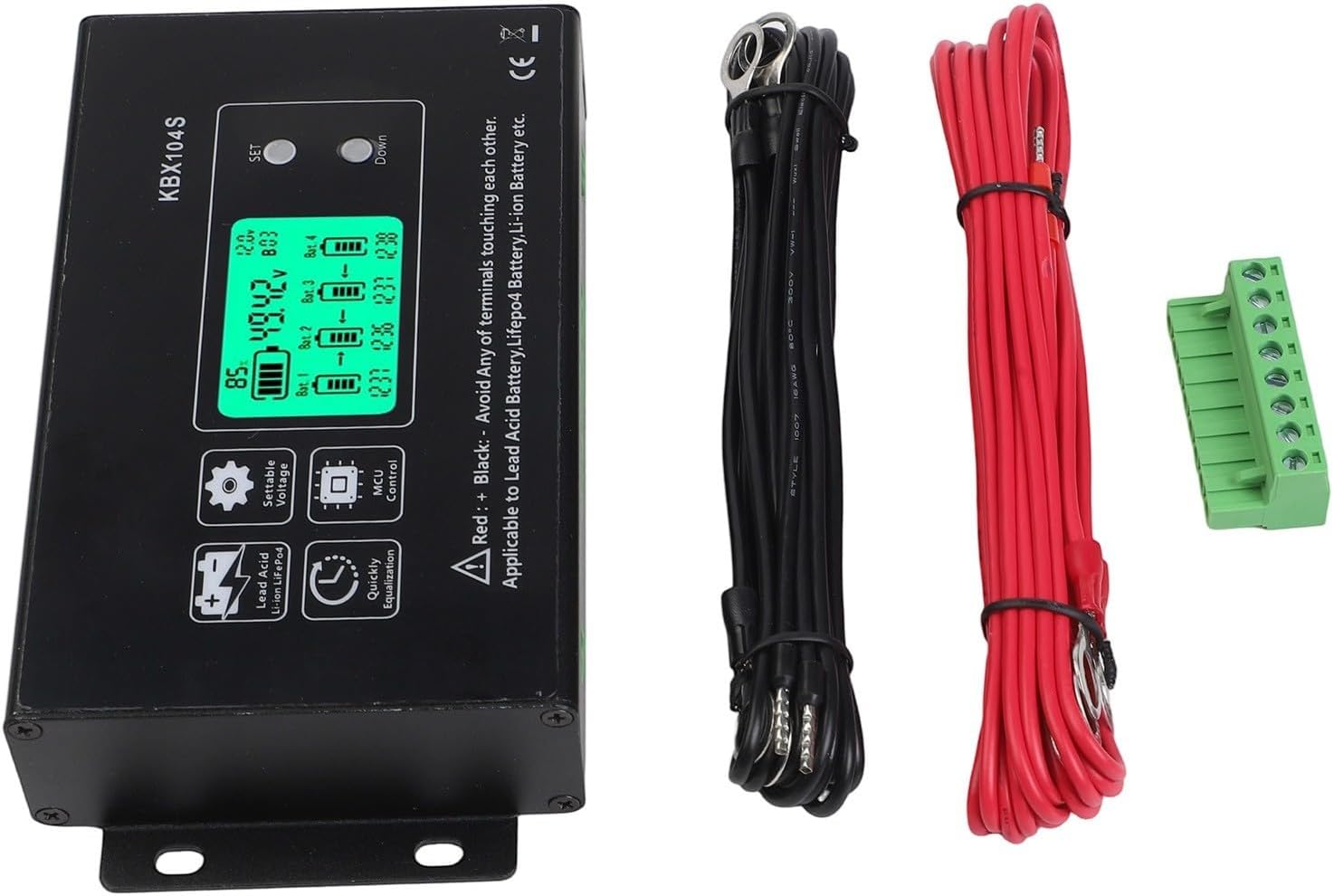

Battery Equalizer, KBX104S 48V Series Balancer, 0-10A Compensation Current, Aluminum Alloy Shell, for 12V 24V 36V 48V 96V Lead-Acid Lithium Battery Packs

Features:KBX104S battery equalizer is used to maintain the charge and discharge balance between each battery in a series-connected battery pack. During the operation of the series-connected battery, the difference in the composition and temperature of the battery cells will cause the charge and discharge of the two batteries to be different. Even when the battery is idle, the difference in self-discharge will cause an imbalance between the series-connected batteries. During the charging process, due to the existence of differences, 1 battery will be overcharged or discharged, while the other will be insufficiently charged or discharged. As the charging and discharging process is repeated, this difference will gradually intensify, eventually leading to premature battery failure.KBX104S battery equalizer is an energy transfer equalizer that can compensate for batteries in both directions. When the voltage difference between the series-connected batteries exceeds 10 millivolts, the battery equalizer starts to work and eventually balances the batteries. It can be connected to the series-connected batteries for a long time and automatically maintains the battery's balance state without maintenance.KBX104S battery equalizer adopts aluminum alloy shell design, which is more conducive to the heat dissipation of components.Plug-in terminals and 1 meter extension cable are more convenient for users to install. The wide voltage design can be used for 7-18Vbatteries. The product is mostly used for 12V lead-acid battery packs and 12V lithium battery packs (lithium titanate, lithiumion and lithium iron phosphate).Specifications:Part name: KBX104S battery equalizerMaterial: PCBProduct model: KBX104SWorking voltage: 4 series (7-18V)Compensation current: 0-10AStandby current: 18mAfor protection: reverse connection for protectionsize: 150×80×30mmConnection wayPlease read the instructions before installing this device!Before connecting the battery equalizer, please confirm the positive and negative poles of each battery group,Avoid short circuit and reverse connection between the battery equalizer terminals.① Connect the VE tubular terminal to the male connector of the quick-connect terminal according to the red (positive) and black (negative) terminals. ② Connect the red battery cable with the M8 terminal to the positive terminal of the first battery, and the black cable to the negative terminal of the battery, and so on for other batteries. ③ After checking that the wiring is correct, connect the battery cable to the male and female connectors of the battery equalizer. 4 Multiple battery equalizers can be used in parallel, just connect and connect. Before the battery is balanced, charging the battery pack with a large current may cause the MOS tube to break down. In addition, a large voltage difference between the batteries may damage the battery equalizer. Please follow the following points to install it correctly and choose a battery equalizer with a suitable voltage. 5 points before installing the battery equalizer: Avoid overvoltage and overcurrent 1: Fully charge the battery 2: The voltage difference between the batteries does not exceed 0.2V 3: Use batteries of the same type 4: Use batteries with the same battery capacity 5: Reasonably use the plastic sheath of the terminal to avoid short circuits between the positive and negative poles - avoid short circuitsPackage Contents:1*KBX104S 48V string voltage equalizer

• [CHARGE AND DISCHARGE BALANCER] KBX104S ensures uniform charging and discharging in series-connected batteries, reducing risks of damage from imbalances during usage.
• [SELF-MAINTAINING SYSTEM] Automatically engages when voltage differences exceed 10 millivolts, keeping your battery pack balanced without manual adjustments needed.
• [EFFICIENT HEAT DISSIPATION] Constructed with a robust aluminum alloy shell that effectively dissipates heat, promoting reliable performance over time.
• [SIMPLE CONNECTION PROCESS] Equipped with plug-in terminals and a 1-meter extension cable for straightforward installation various types of batteries including lead-acid and lithium variants.
